Bridges, Underground- and hydraulic structures, Infrastructure
Building category
Solid construction
Construction method
Detail planning, Planning of structural framework
Performed services
Inland
Region
October 2023
Processing time from
August 2024
Processing time until
-DI Sascha Grujic
Project manager
DI Georg Wallner
Substitute project manager
DI Walter Reisenauer, Laetitia Elsener, MIchael Huber
Project team member
32.700,00 €
Project costs
Wildbach- und Lawinenverbauung, Bludenz
Client
Integral bridges, untensioned
Type of bridge
2
Number of fields
10,00 m
Maximum span
24,00 m
Length of bride
225,00 m²
Expanse of bridge
Municipal road
Type of road
4,00 m
Width of road
155,00 m
Length of road
Description of project

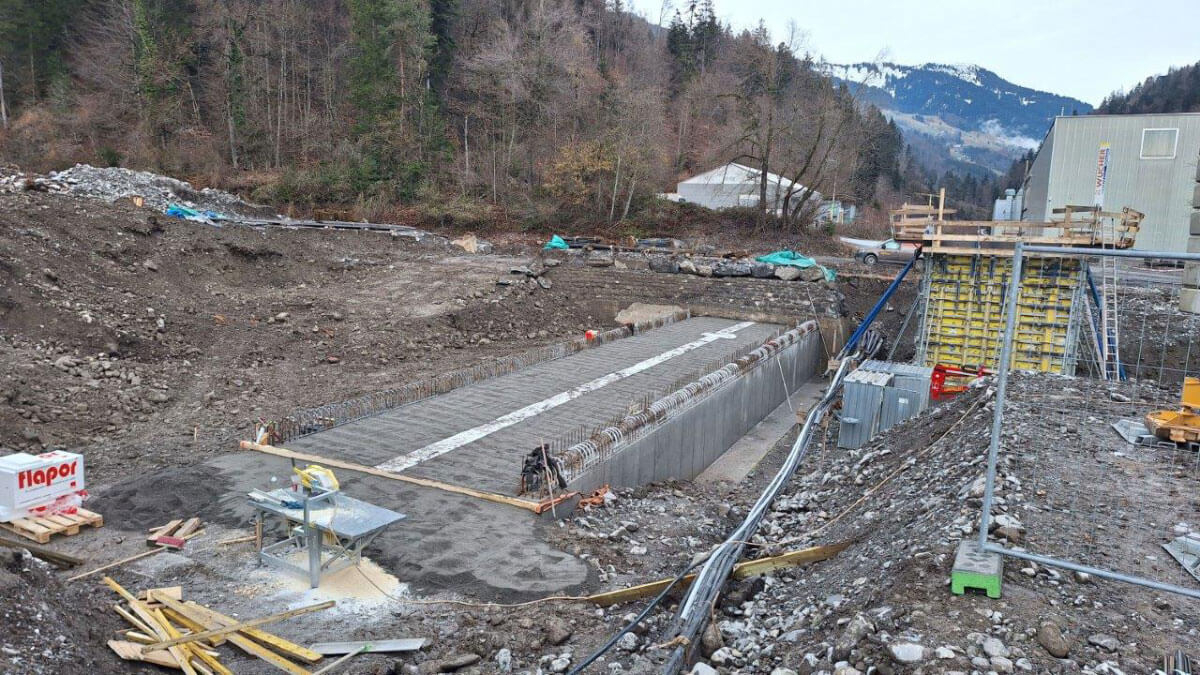

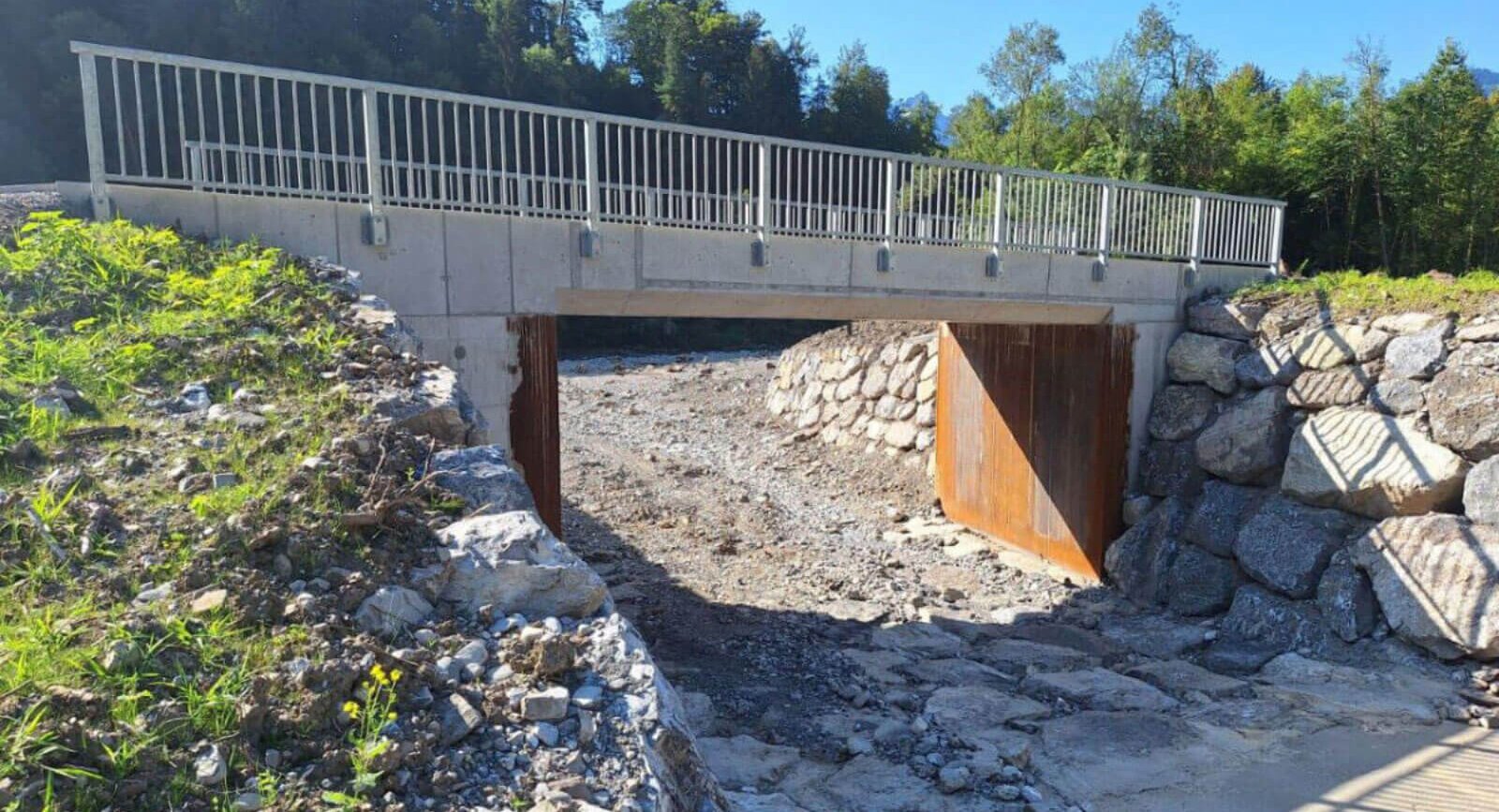

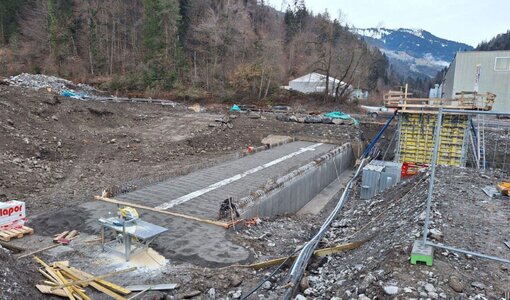

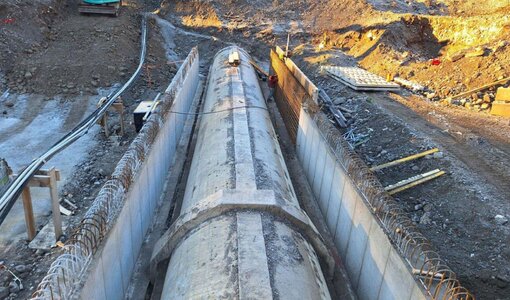

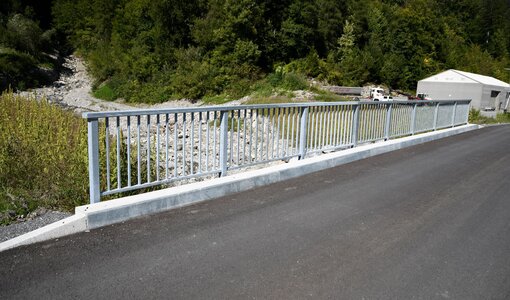

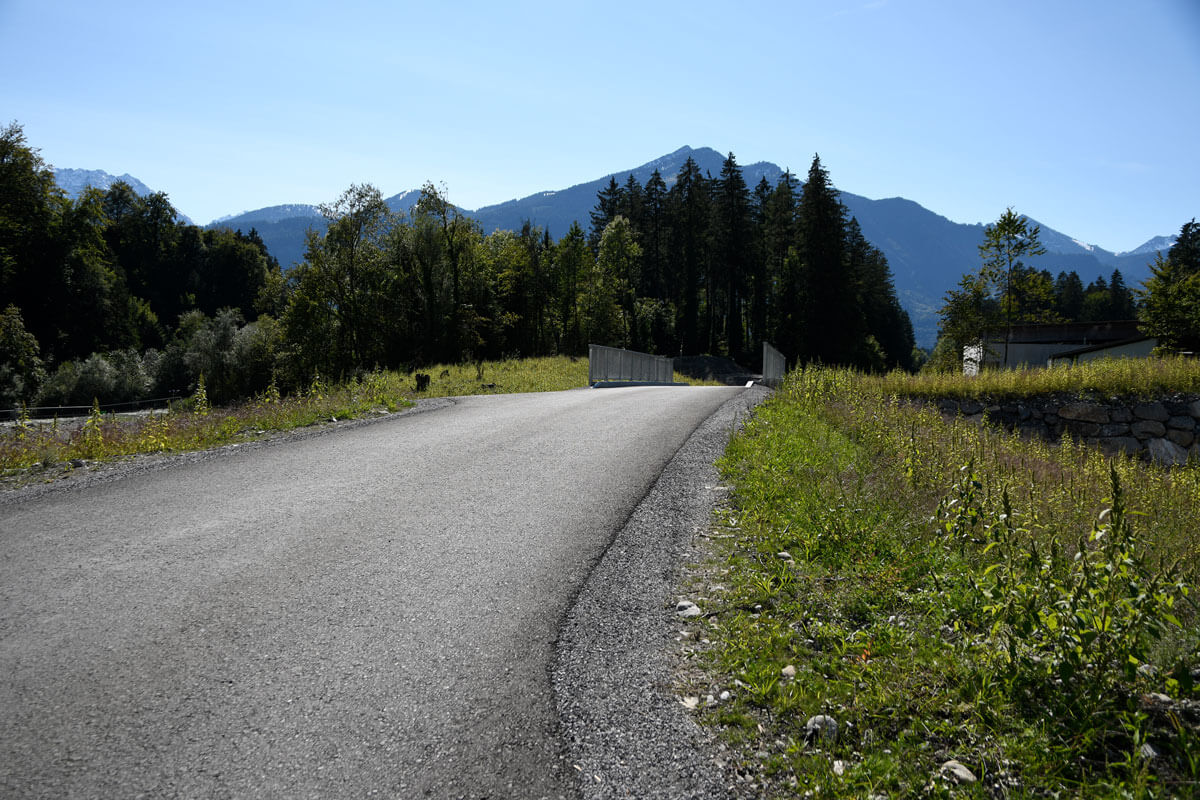

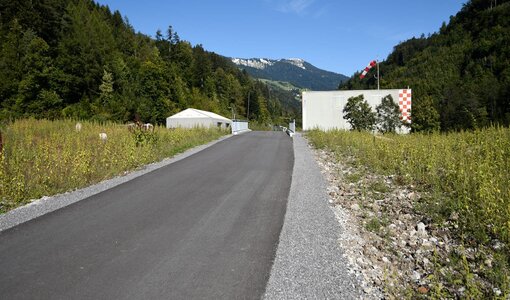

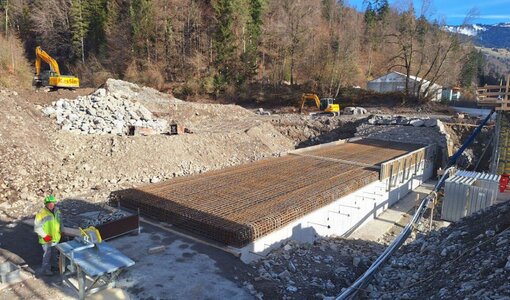

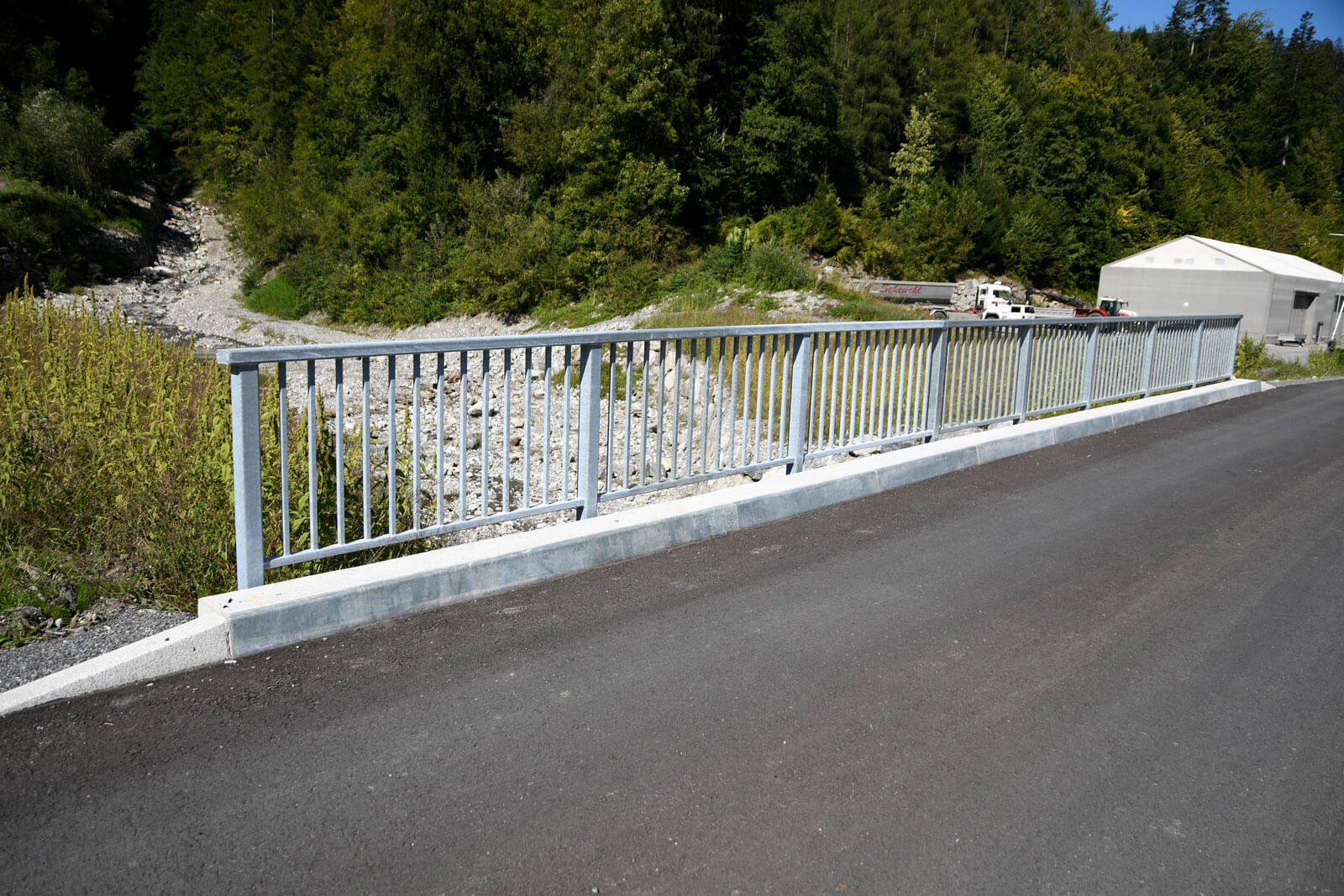

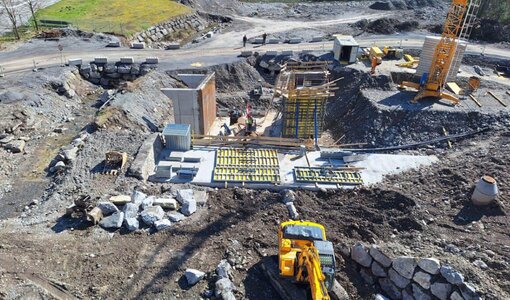

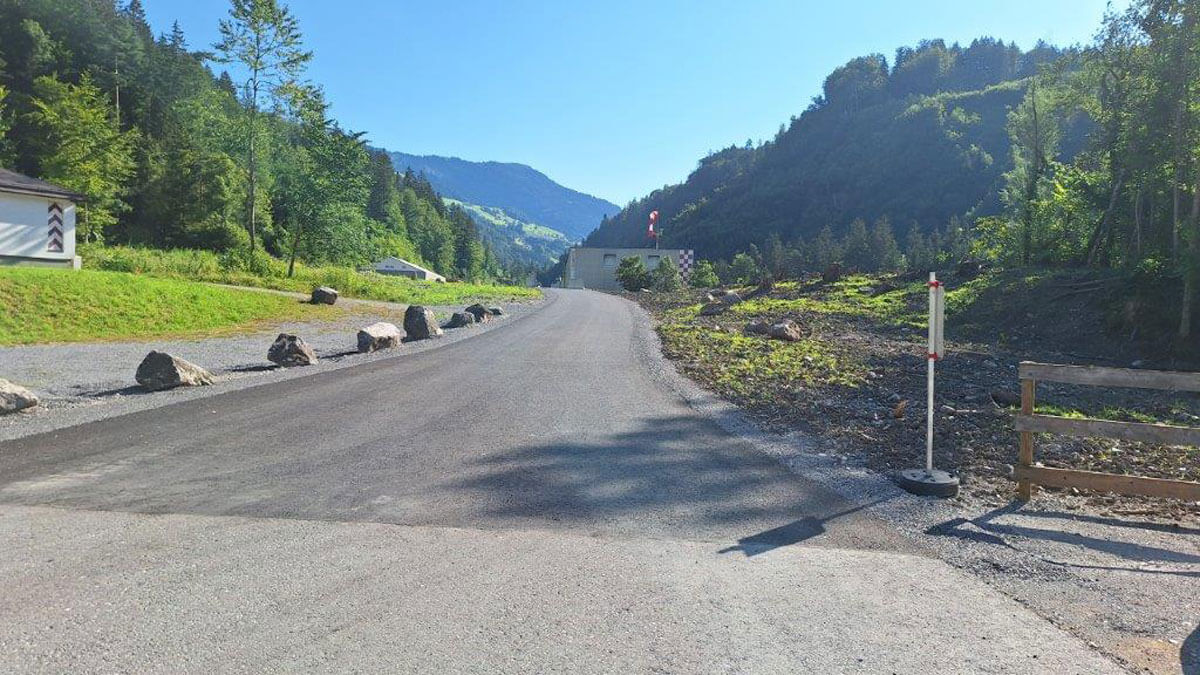

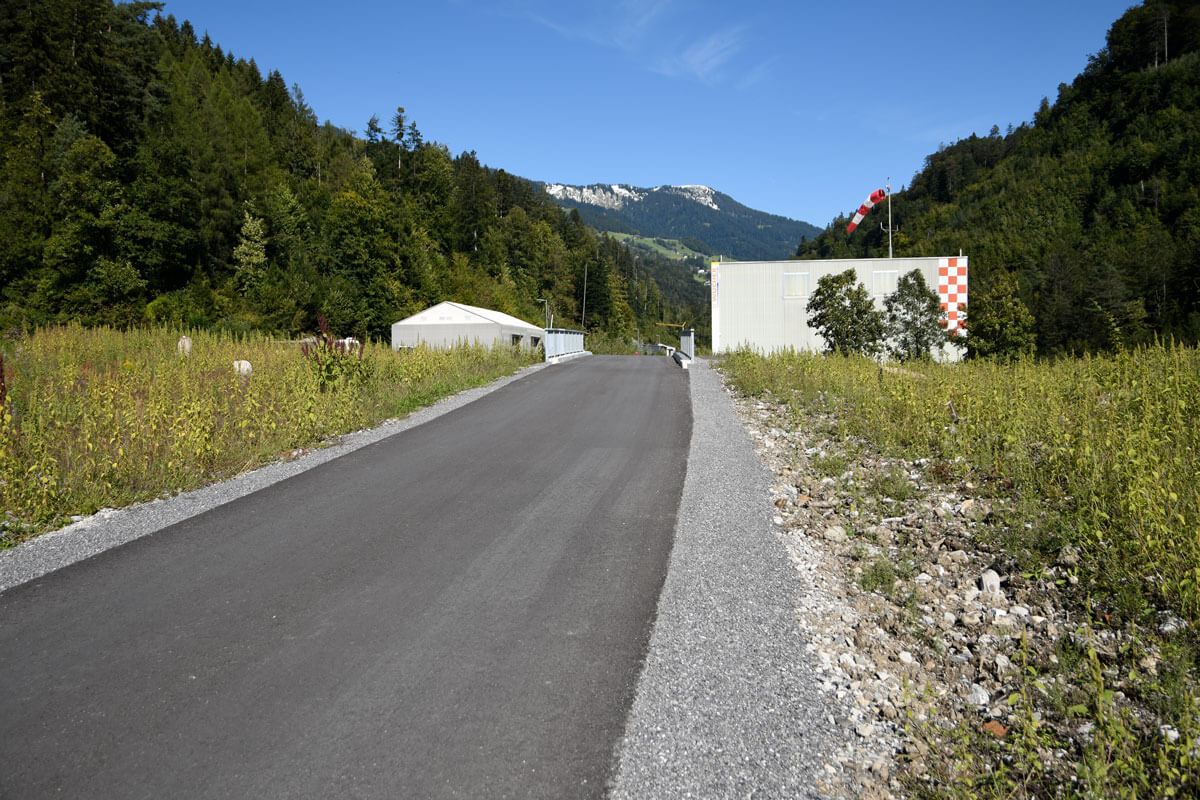

The torrent and avalanche protection office Bludenz built a new bridge over the Schlosstobel river in Thüringen in 2023. We were commissioned with the planning works for the road relocation including the bridge support structure as well as the structural analysis of the pipe bridging “penstock Lutz power station”.
Description of tasks

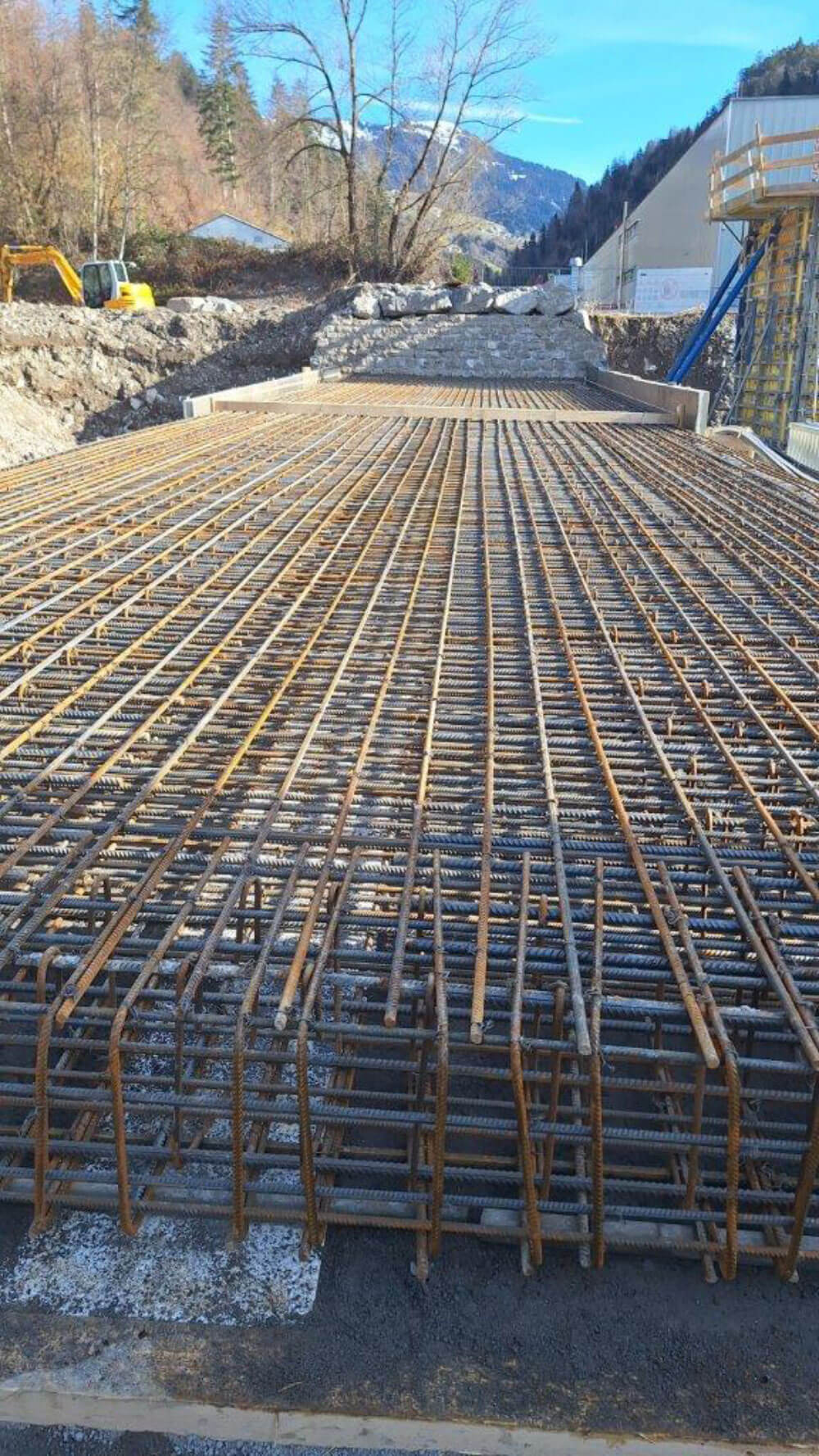

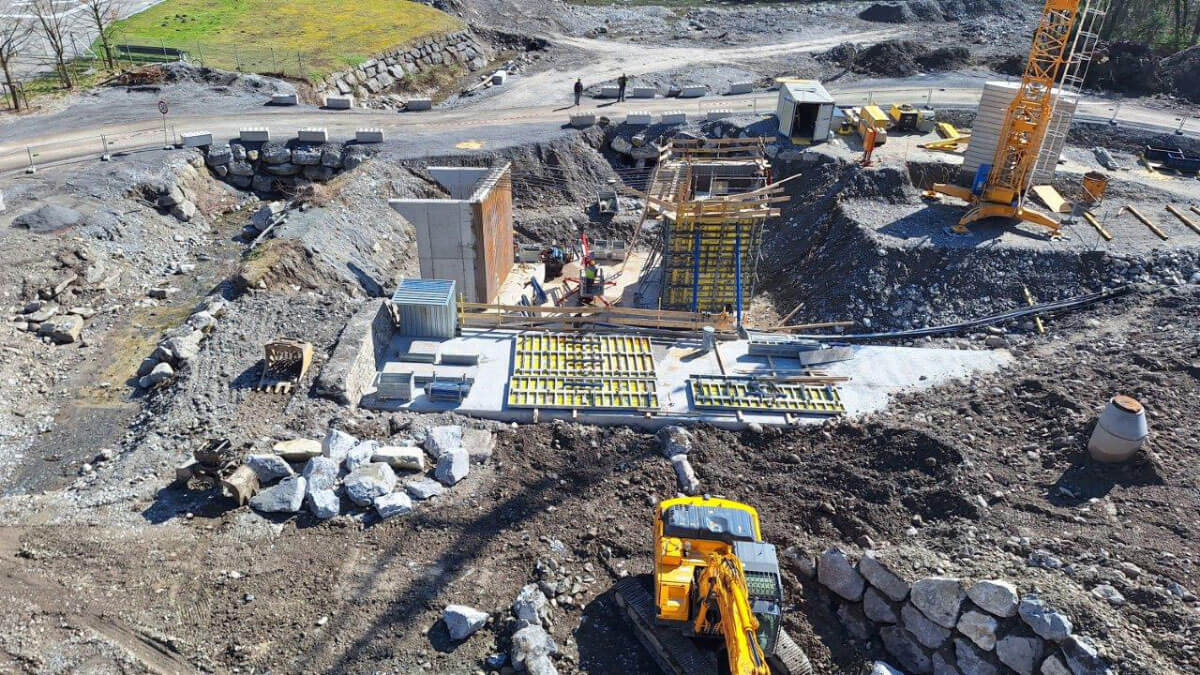

- Detailed planning of bridge structure (structural calculations, constructional optimizing of edifice, site plan/building plan/formwork plan)

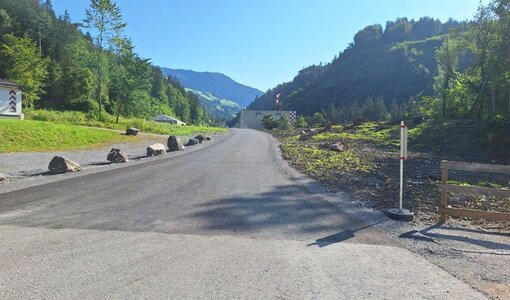

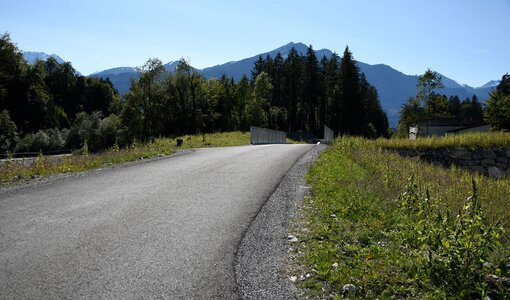

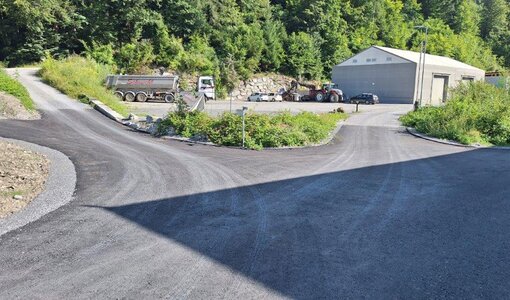

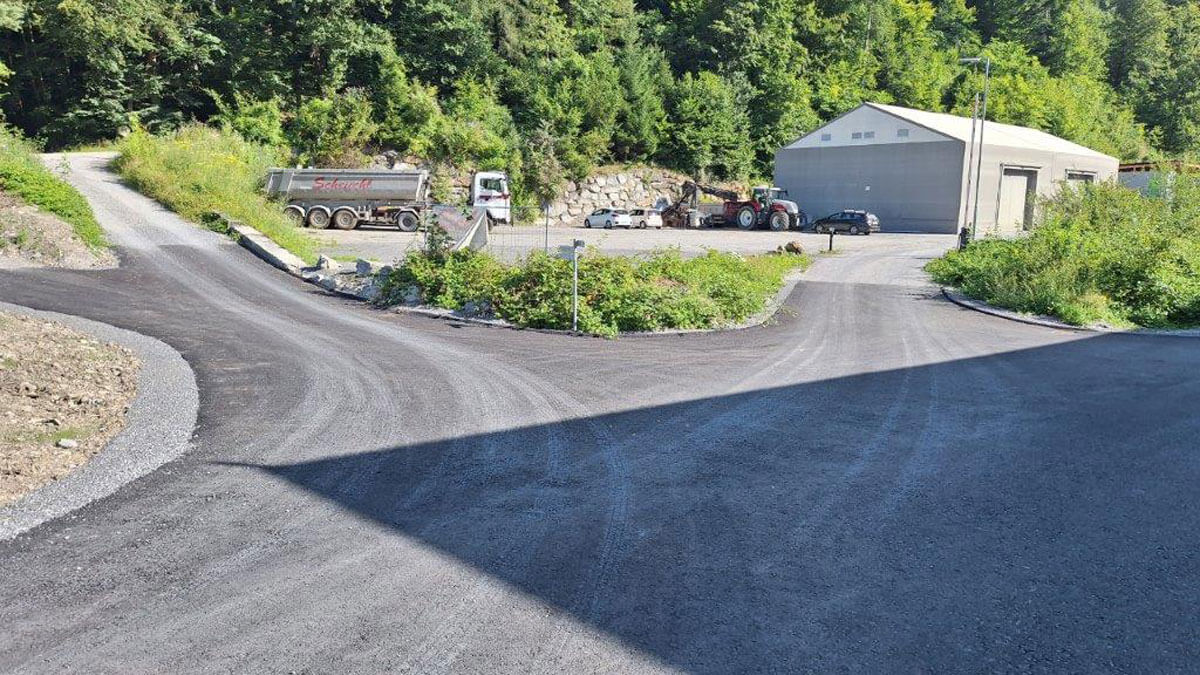

- Detailed planning of road positioning (raising of road axis considering new bridge construction, road connections, design specifications)
- Planning of road drainage

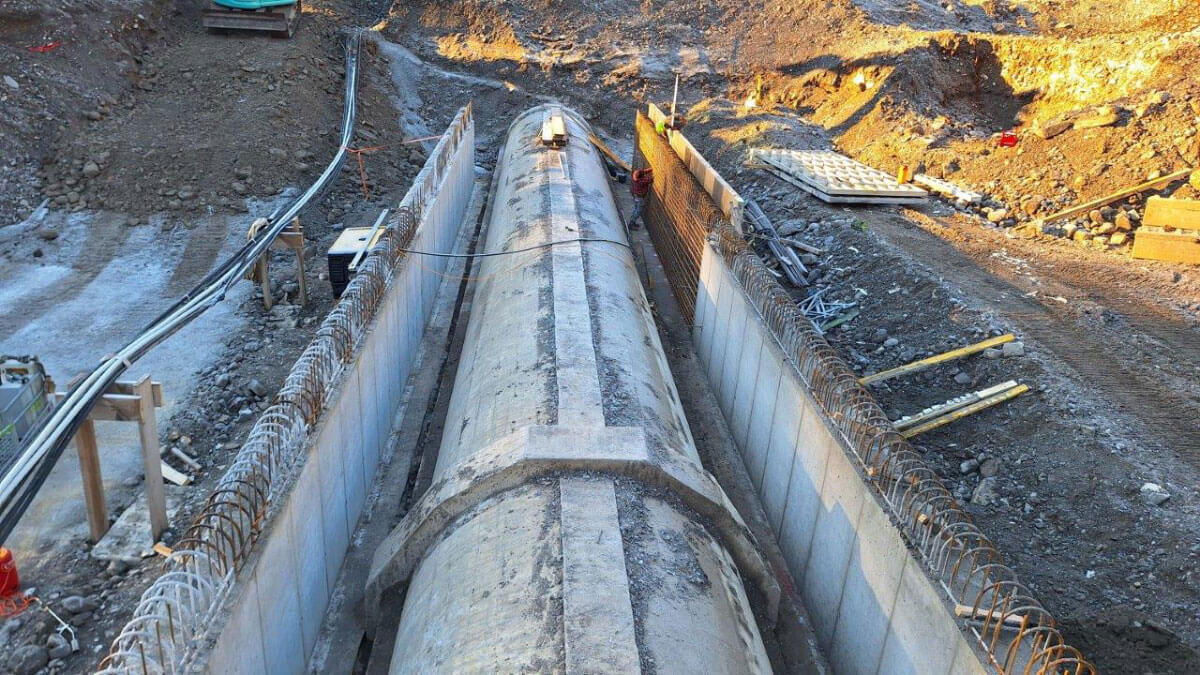

- Structural calculations/dimensioning of pipe bridging including coordination with network operator and constructive optimizing of building

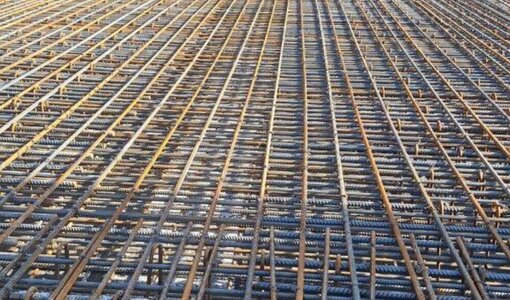

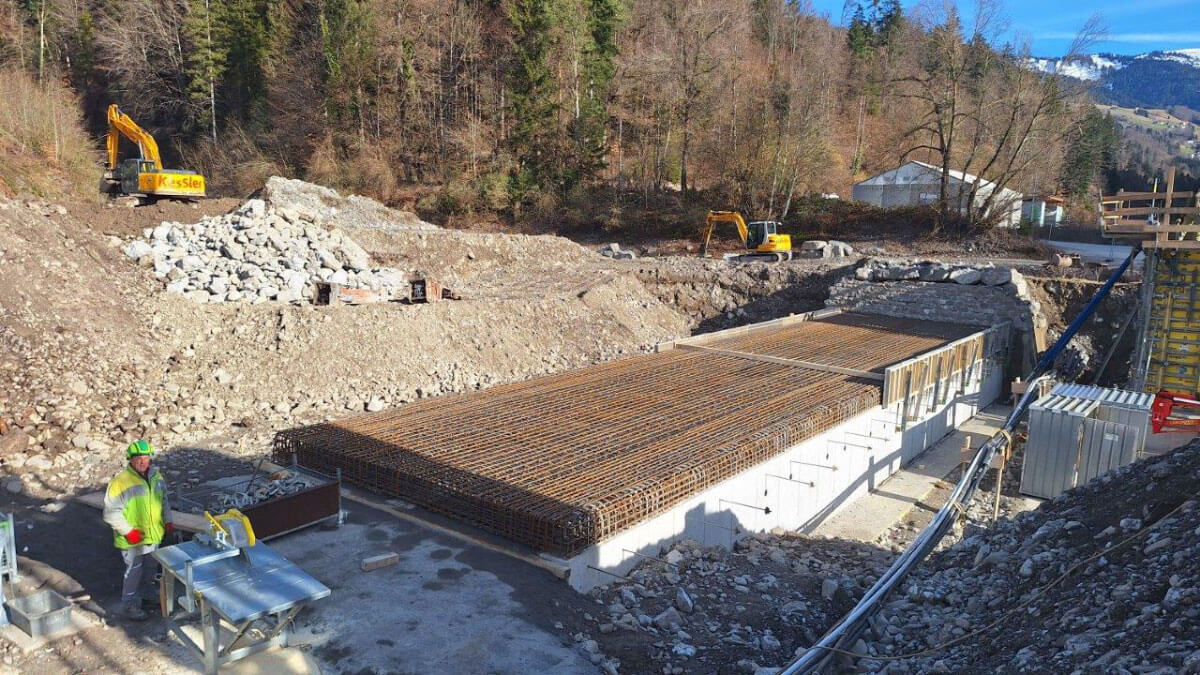

- Creation of site plan/building plan/formwork plan for pipe bridging Creation of reinforcement plans and final inspection of reinforcement
- bars for bridge construction and pipe bridging
