Bridges, Infrastructure
Building category
Solid construction
Construction method
Building inspection , Expertise, Examination
Performed services
Inland
Region
January 2016
Processing time from
August 2016
Processing time until
DI Sascha Grujic
Project manager
DI Georg Wallner
Substitute project manager
DI Walter Reisenauer
Project team member
Amt der Vorarlberger Landesregierung
Client
Slab bridges
Type of bridge
3
Number of fields
11,00 m
Maximum span
28,00 m
Length of bride
238,00 m²
Expanse of bridge
Description of bridge

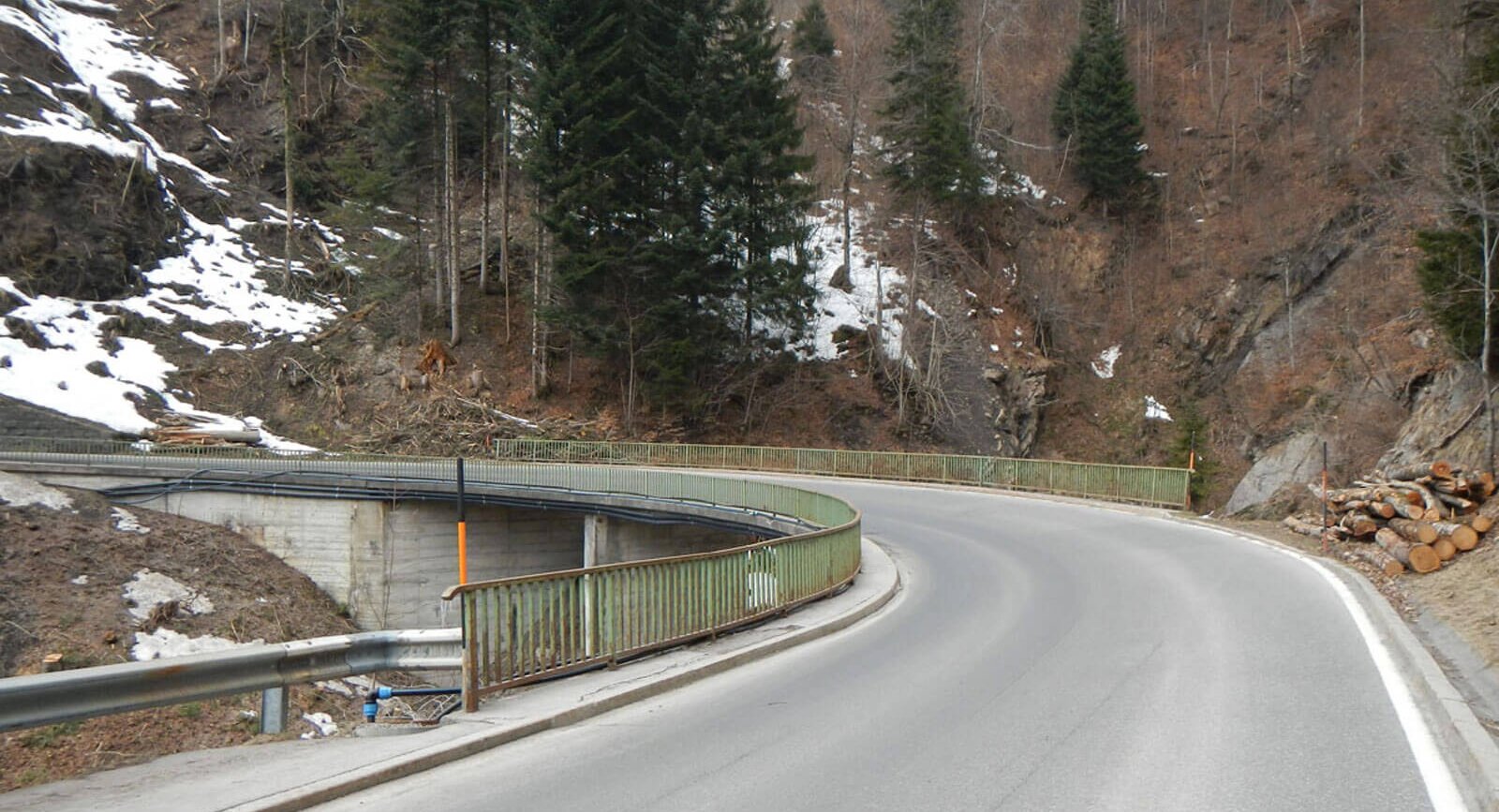

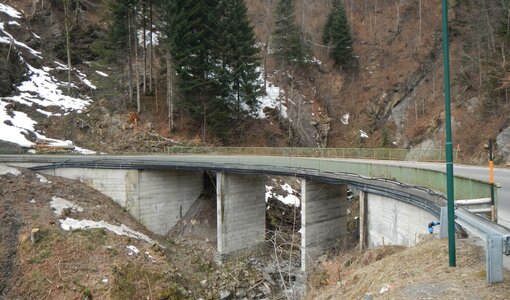

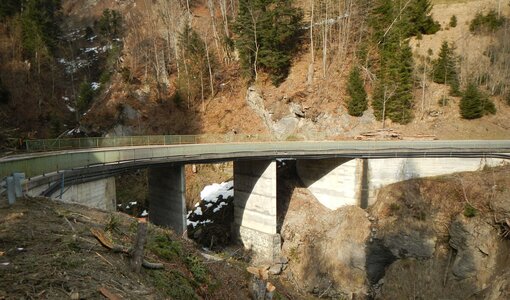

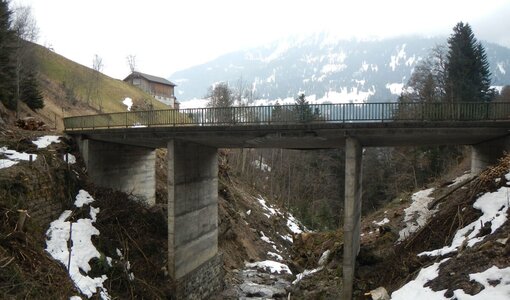

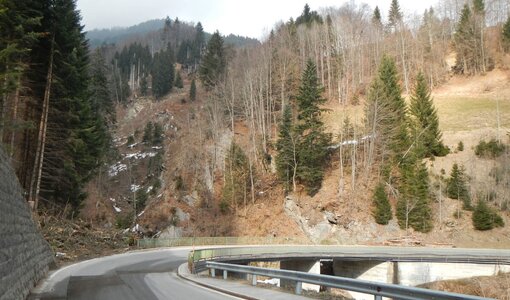

The Hölltobel-Bridge is a 3-span, loosely reinforced slab bridge with a radius of approx. 26.50 m in the road axis. The abutment and the centre pier are situated parallel to each other. As the bridge was rated a 5 (“bad state of preservation”) the county government of Vorarlberg ordered a recalculation with the up-to-date standards and the norm ONR 24008. So the actual load reserve capacity could be determined in consideration of the heavily corroded reinforcement.
Bridge details:
- range of centre field 11.00 m
- total length 28.00 m
- width of bridge 8.50 m
Description of tasks
- Development of exploration program for the remaining cross-section of the corroded reinforcement
- Record of reinforcement on site
- Recalculation of bridge
- Recommendation of different measures and possibilities of restrictions in order to use the bridge until its reconstruction
