Protective structures, Underground- and hydraulic structures
Building category
Solid construction
Construction method
Detail planning, Planning of structural framework
Performed services
Inland
Region
November 2016
Processing time from
January 2018
Processing time until
DI Georg Wallner
Project manager
DI Sascha Grujic
Substitute project manager
Wildbach- und Lawinenverbauung Gebietsbauleitung Bludenz
Client
40,60 m
Length of crown dam
12,80 m
Height
Description of project

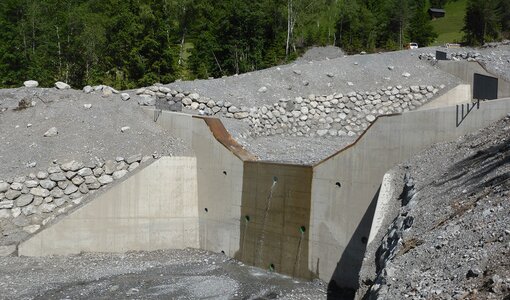

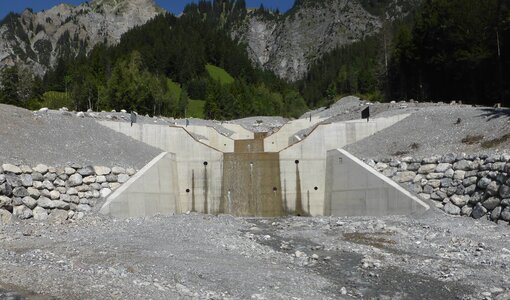

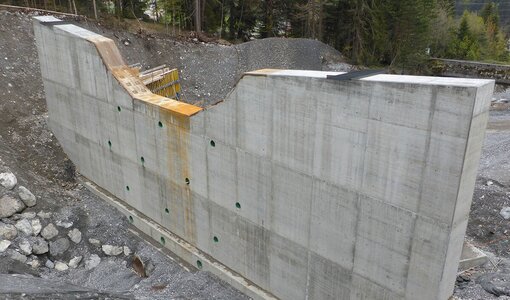

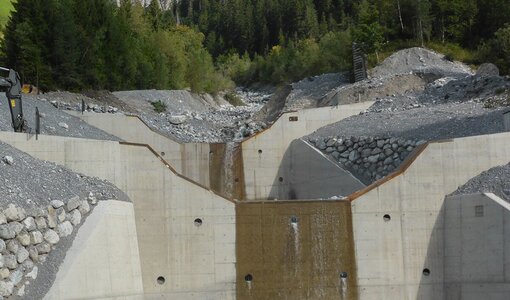

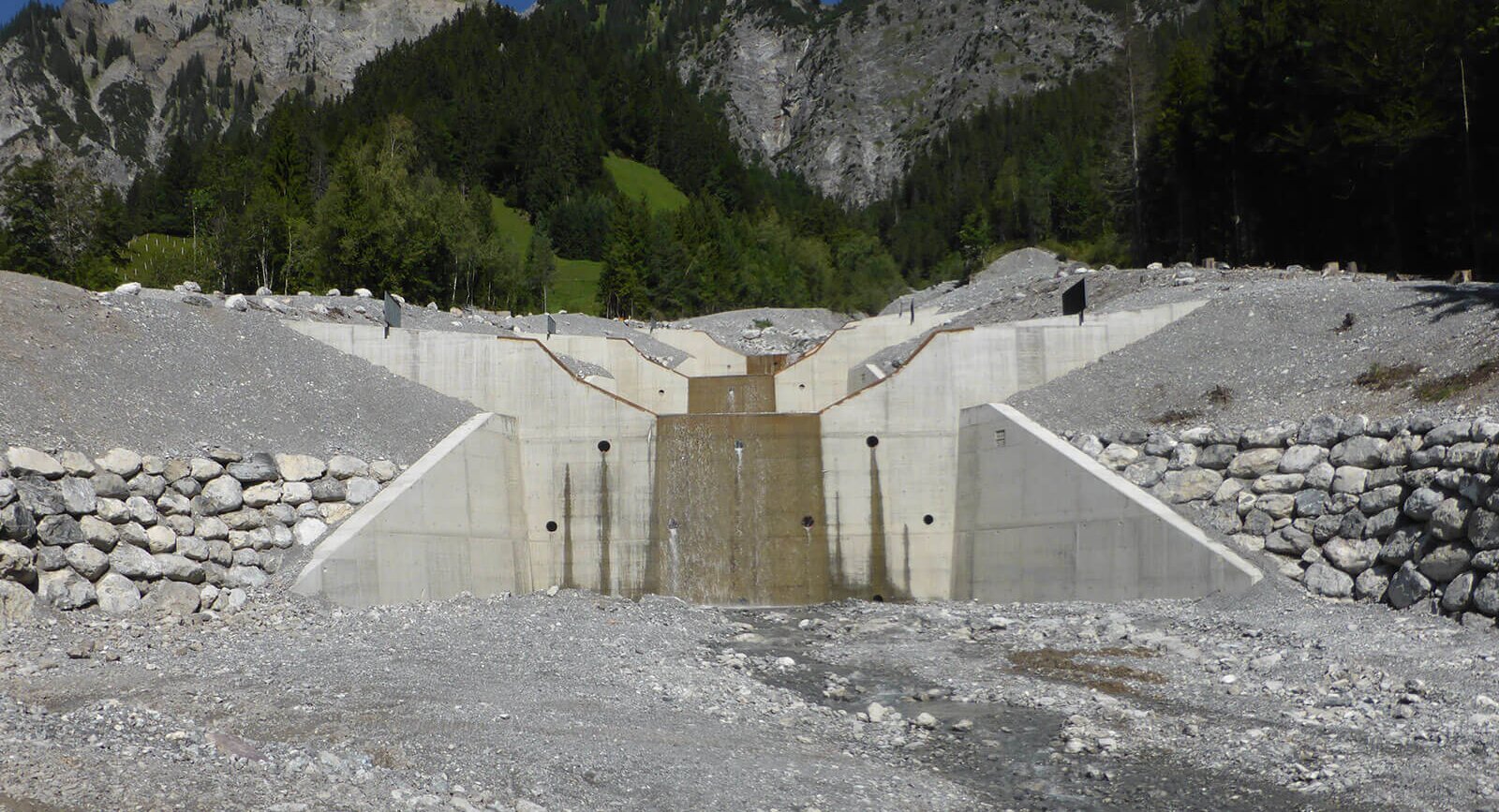

The building was realized as flat slab deck dam with airside pillars. The pillars guarantee the tilting resistance. The slide stability is provided by the horizontal bedding in the downstream terrain, which is secured with river construction stones.
Description of tasks
- Statically dimensioning of the dam
- Detailed planning of the dam
- Reinforcement and formwork plans
