Refurbishment and enlargement of canteen - Main office SPAR

Business- and office buildings

Building category

Timber construction, Solid construction, Steel construction, System building construction

Construction method

Planning of structural framework

Performed services



January 2021

Processing time from

June 2021

Processing time until

DI Georg Wallner

Project manager

DI Sascha Grujic

Substitute project manager

Alexander Grujic

Project team member

SPAR Österr. Warenhandels AG, Zentrale Dornbirn


1.080,00 m³

Building volume

180,00 m²

Gross floor area

Description of project

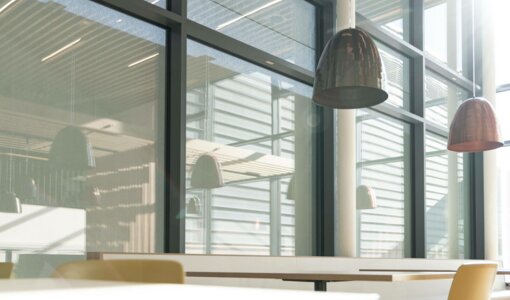

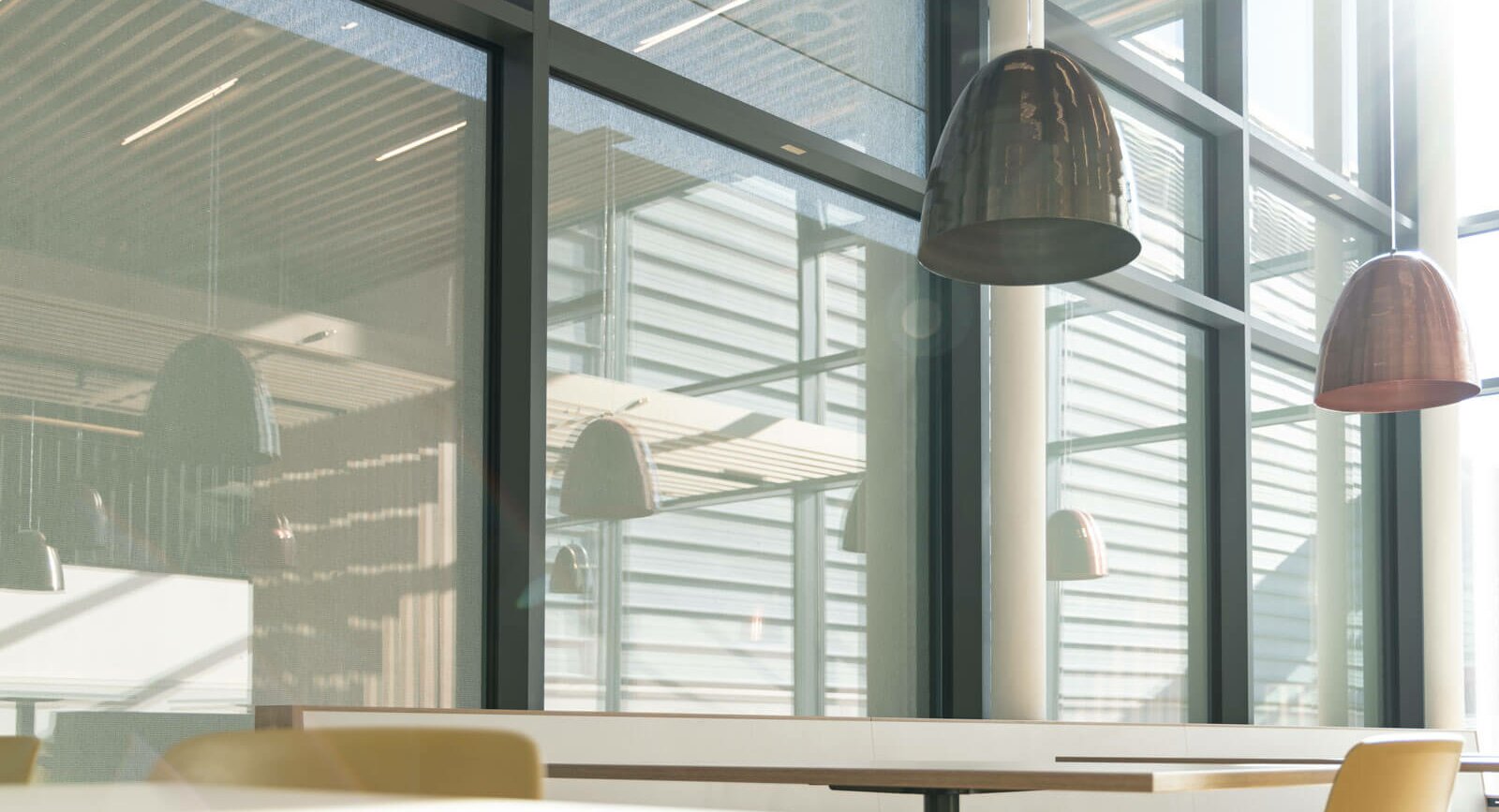

The SPAR main office in Dornbirn - Wallenmahd (A) was built in 1998 - 2000. Due to altered requirements it was necessary to adjust the canteen. To do so, the grassed halation on the top floor was replaced with a glass-timber construction, an existing conservatory was enlarged with a glass-steel construction and in the adjoining area the kitchen, cooling chambers, bathroom facilities and living zones were renewed respectively rebuilt.

Our task was to provide the planning of structural framework for the new building parts. We had to examine the transfer of loads and the load distribution on the existing pillars and to provide the relevant underpinning in order to ensure structural safety.  During the renewal works at existing parts several breaches had to be made especially for the new ventilation. This made recalculations and an investigation of the reinforced concrete beams, hollow core slabs, ribbed slabs and in-situ concrete slabs necessary.

Description of tasks

  • Statically constructive support for the new erected breaker in the form of a timber construction including the necessary reinforced concrete beams for the load distribution on the existing structure
  • Statically constructive support of the steel-glass roof adjoining to the existing conservatory
  • Survey of refurbishment works at the support structure of existing parts, especially of the breaches for the newly implemented installation engineering
