Retaining dam Alvierbach, Brand

Protective structures, Underground- and hydraulic structures

Building category

Solid construction

Construction method

Detail planning, Planning of structural framework

Performed services



October 2011

Processing time from

December 2011

Processing time until

DI Sascha Grujic

Project manager

Wildbach- und Lawinenverbauung Gebietsbauleitung Bludenz


57,50 m

Length of crown dam

13,00 m


Description of project

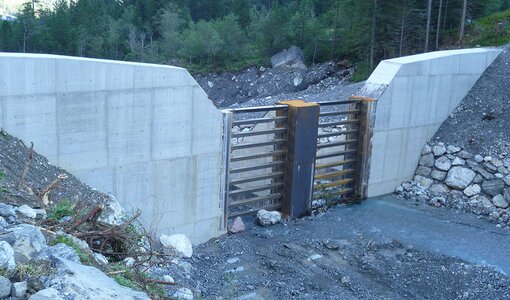

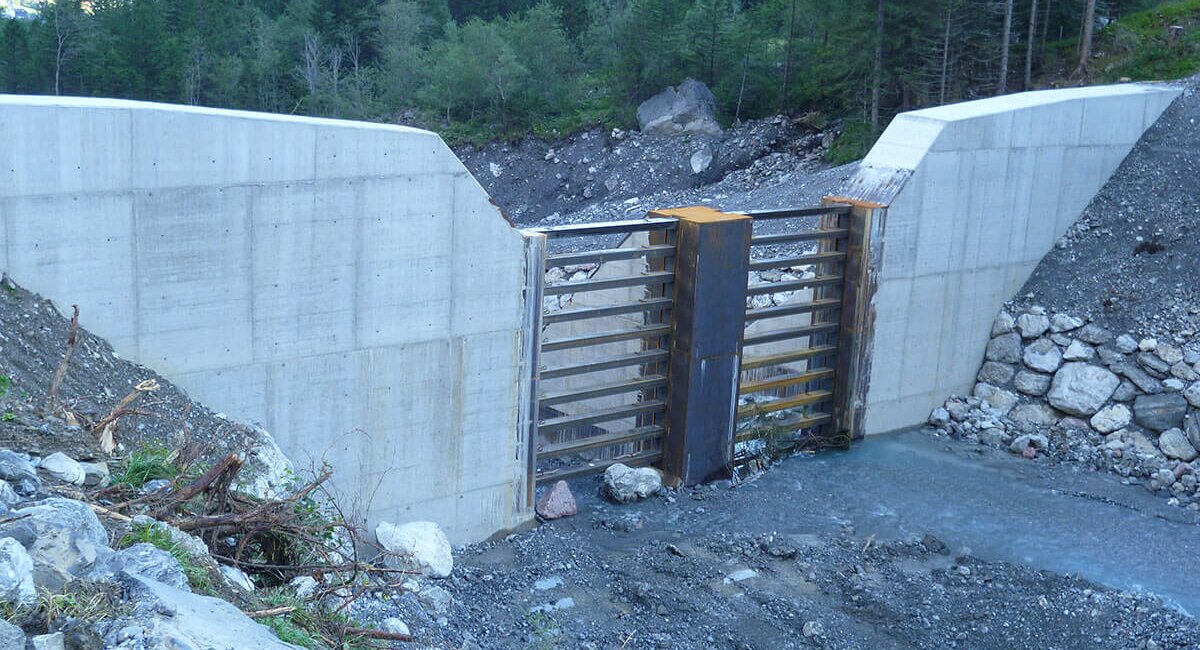

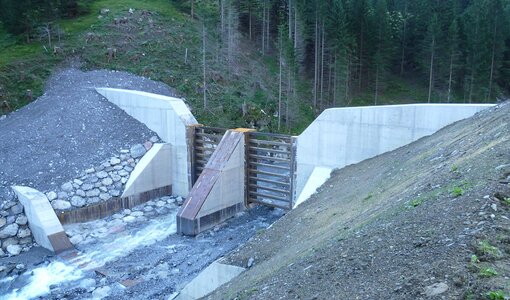

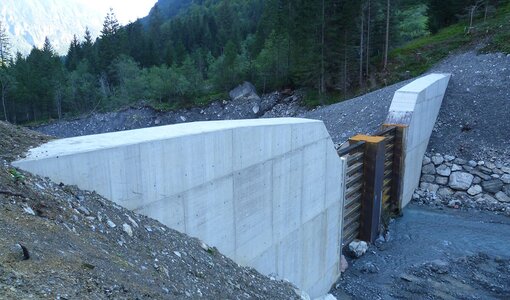

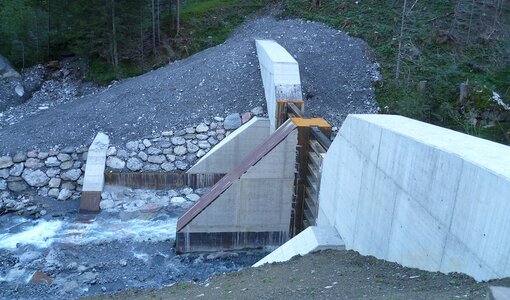

The filter barrier/debris dam of the Alvier-river in the municipality of Brand (A) consists of a main and a subsidiary dam. It was built as a mass-active, dissolved load-bearing structure. The main dam with wing walls is connected through preliminary framing with the auxiliary dam and thus as a whole system works like a cantilever retaining wall. The filter section is separated by a central pillar into two parts with a width of 5 m and a height of 8 m. The filter grids are made of steel girders. In the main dam and in the subsidiary dam two parts with different heights of flow-off were built in order to create a low-water channel over the stilling basin.

Description of tasks

  • Statically dimensioning of the dam
  • Detailed planning of the dam
  • Reinforcement and formwork plans
